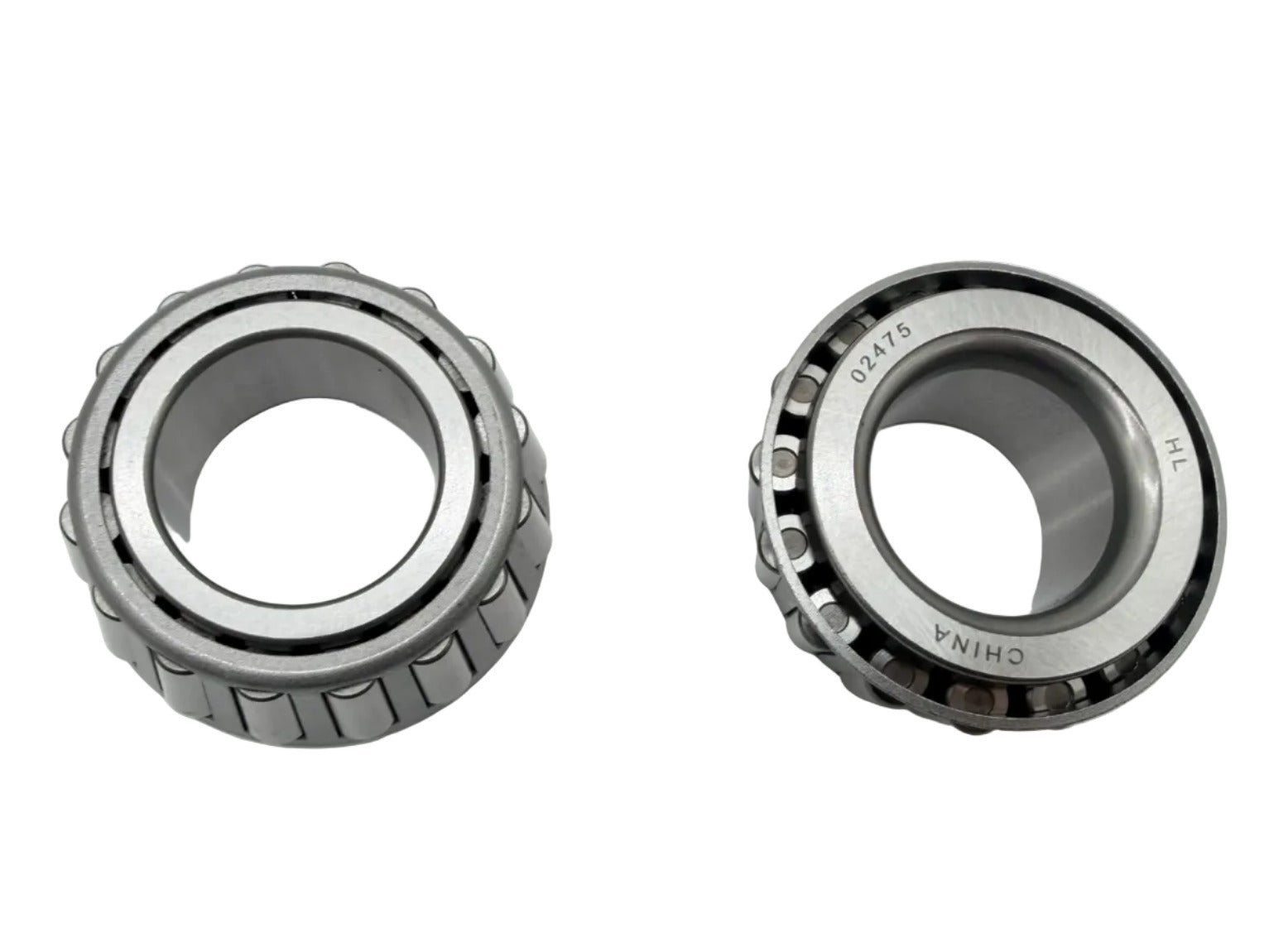

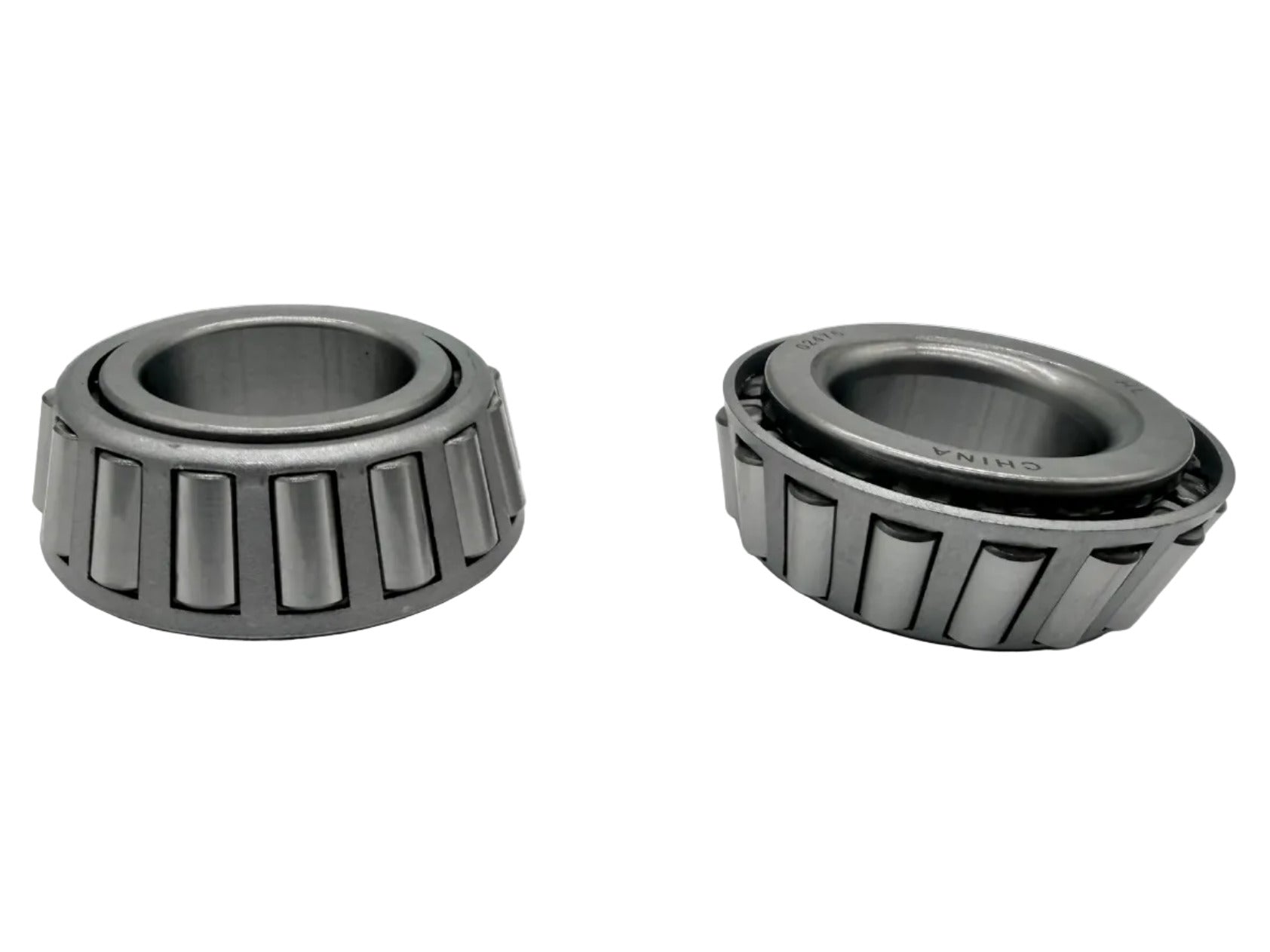

8K Outer Bearing – 02475

8K Trailer Axle Outer Bearing – 02475

The 02475 Outer Bearing is a heavy-duty tapered roller bearing designed for compatible 8,000 lb trailer axle hub assemblies. It supports the outer portion of the hub and provides smooth, dependable wheel rotation under heavy trailer loads.

Specifications

• Bearing Number: 02475
• Axle Application: 8,000 lbs
• Bearing Position: Outer
• Bearing Type: Tapered Roller Bearing
• Inner Diameter (ID): 1.250"
• Inner Ring Width: 0.875"
• Lubrication: Grease or Oil Bath

Matching Race

• Outer Race: 02420
• Race Outer Diameter: 2.6875"

Application

Designed for compatible 8K trailer hubs and spindles using a 02475 outer bearing.

Common applications include:

• Equipment Trailers
• Gooseneck Trailers
• Dump Trailers
• Heavy-Duty Utility Trailers
• Commercial Trailers

Important

BEARING ONLY – RACE SOLD SEPARATELY UNLESS SPECIFICALLY STATED.

Verify the 02475 bearing number and 1.250" inner diameter with your existing bearing or spindle before ordering.
