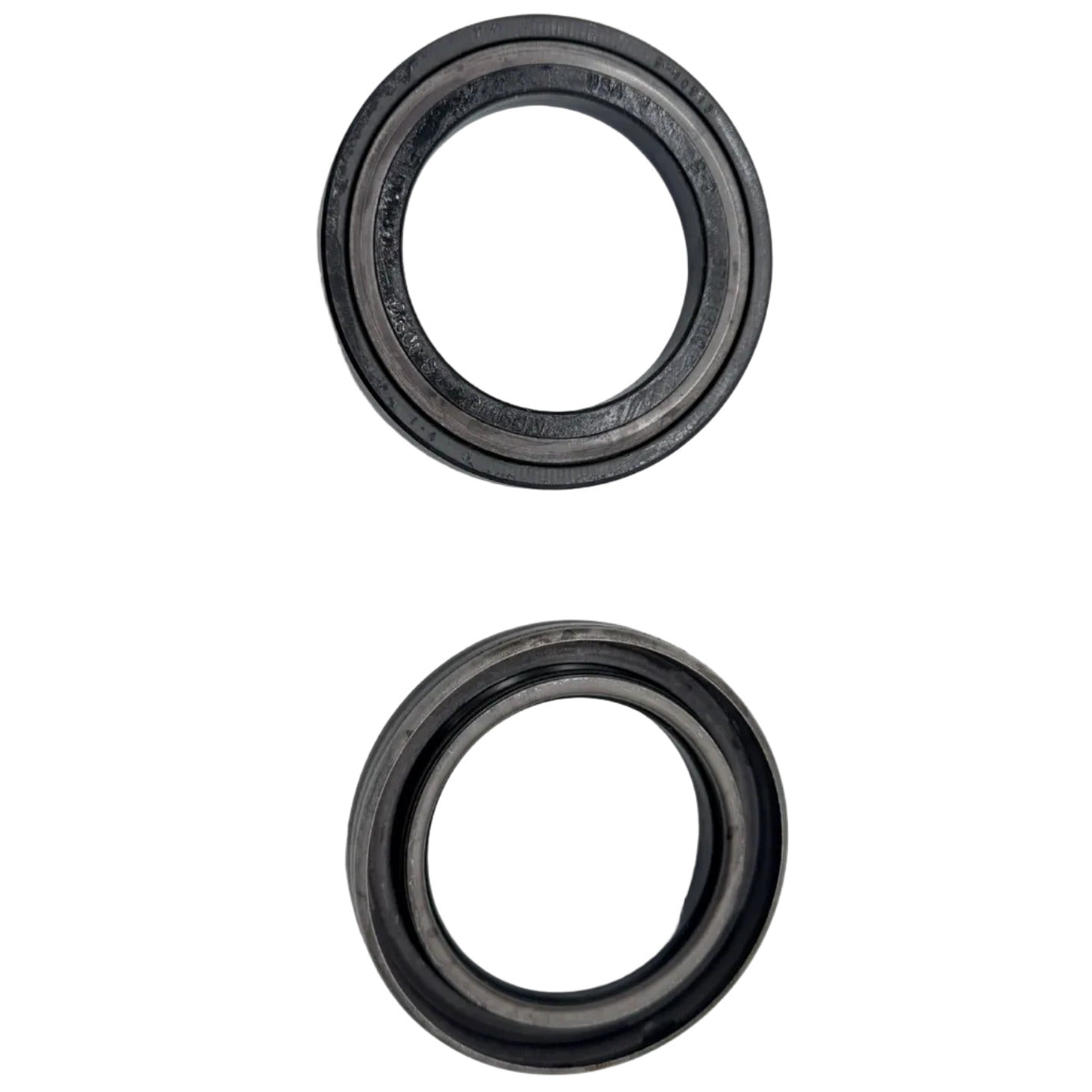

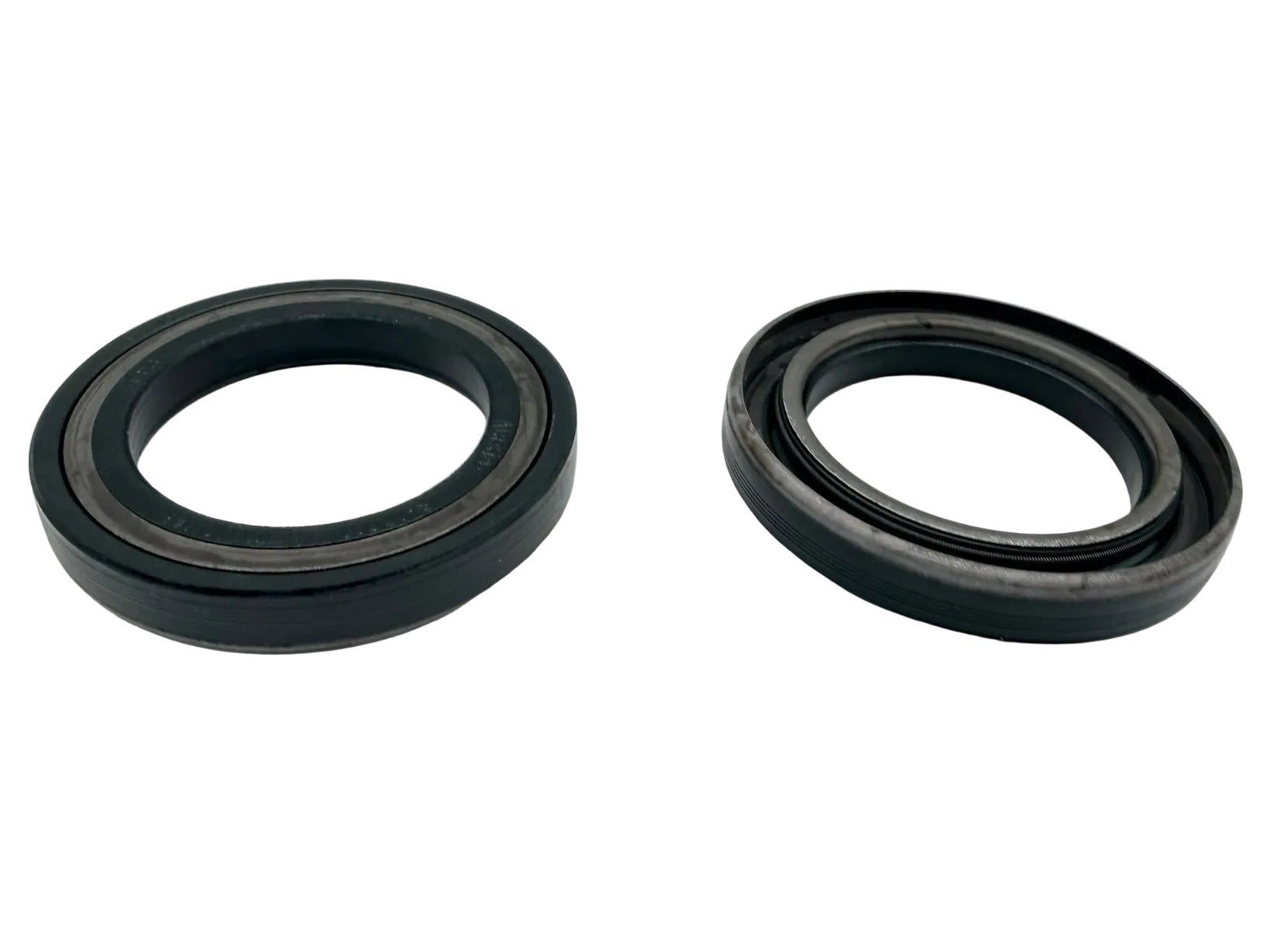

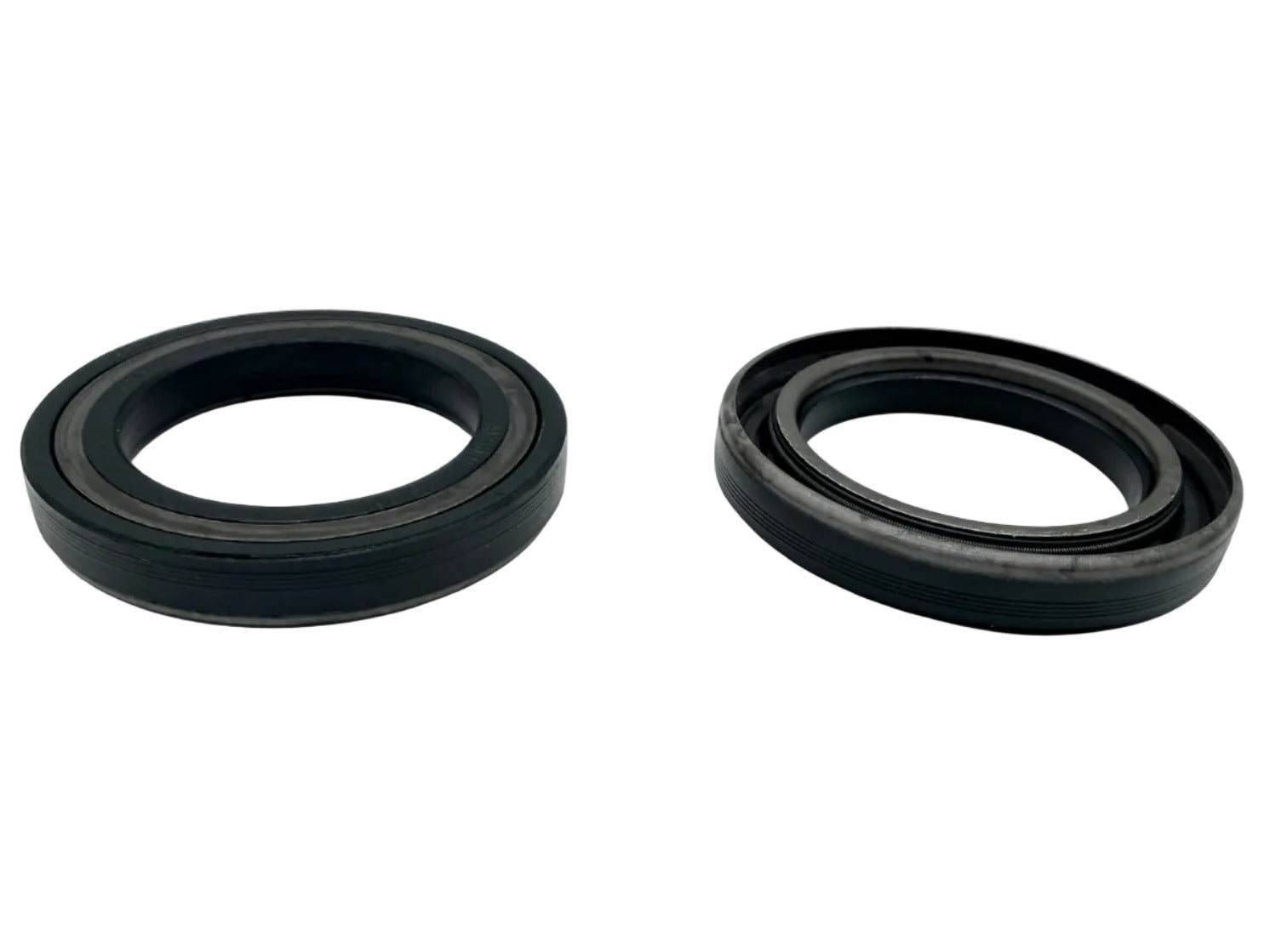

8K Oil Bath Axle Seal – Dexter 10-63 / 10-225-15

8K Oil Bath Axle Seal – Dexter 10-63 / 10-225-15

The 10-225-15 Oil Bath Seal is a heavy-duty unitized hub seal designed for compatible 8,000 lb trailer axles with oil-bath hubs. It is a direct replacement for Dexter 010-063-00, commonly referred to as Dexter 10-63.

The unitized design helps retain hub oil while protecting the bearings and internal hub components from dirt, moisture, and other contaminants.

Specifications

• Part Number: 10-225-15
• Dexter Cross Reference: 010-063-00
• Dexter Number: 10-63
• Axle Application: 8,000 lbs
• Seal Type: Unitized Oil Bath Seal
• Inner Diameter (ID): Approximately 2.255"
• Outer Diameter (OD): Approximately 3.38"
• Lubrication Type: Oil Bath
• Application: Trailer Hub / Spindle Seal

Compatibility

Designed for compatible 8K Dexter-style oil bath trailer axles and hub assemblies using the Dexter 10-63 seal.

Also used in certain 7K oil-bath axle applications that require the same seal dimensions.

Application

Ideal for servicing oil-bath hubs on:

• Equipment Trailers
• Gooseneck Trailers
• Dump Trailers
• Heavy-Duty Utility Trailers
• Commercial Trailers
• Livestock Trailers

Important

FOR OIL BATH HUB APPLICATIONS.

Verify the 10-63 / 010-063-00 cross-reference, 2.255" ID, 3.38" OD, and existing hub configuration before ordering.
