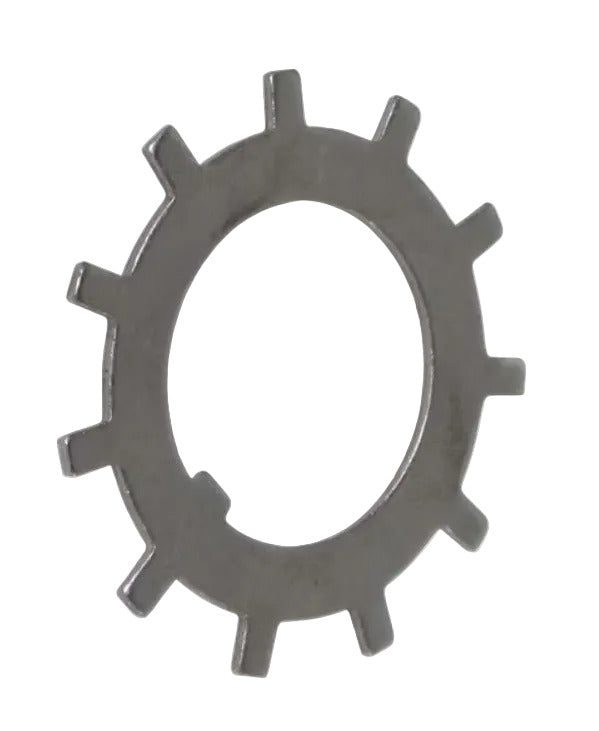

10K - 12K - 15K Dexter Tang Washer 1.75" ID #005-059-00 / 5-59

$2.49 Sold out
Shipping calculated at checkout.

10K - 12K - 15K Dexter Tang Washer 1.75" ID #005-059-00 / 5-59

Key Features:

Heavy-Duty Axle Compatibility: Designed for Dexter 10,000 lb Heavy Duty, 12,000 lb, and 15,000 lb trailer axles.

Secure Locking Design: The tang washer locks into the spindle keyway and aligns with the spindle nut, helping maintain proper bearing adjustment and preventing nut rotation during operation.

Precision Fit: Manufactured with a 1.75" inside diameter for use with Dexter 10K–15K axle spindle assemblies.

Bearing Retention System: Works in conjunction with the inner and outer spindle nuts to secure wheel bearings and maintain proper hub preload.

Dexter 10K–15K Axle Bearing Adjustment Procedure:

• Tighten the inner spindle nut to 100–150 ft-lbs while rotating the hub to properly seat the bearings.
• Loosen the inner nut completely.
• Re-tighten the inner nut finger tight, then back off to the nearest slot that aligns with the tang washer.
• Install the 005-059-00 tang washer.
• Install the outer spindle nut and torque to 100–150 ft-lbs to complete the assembly.
