Dexter DX1600 EOH Disc Brake Actuator – 1,600 PSI – K71-651-00

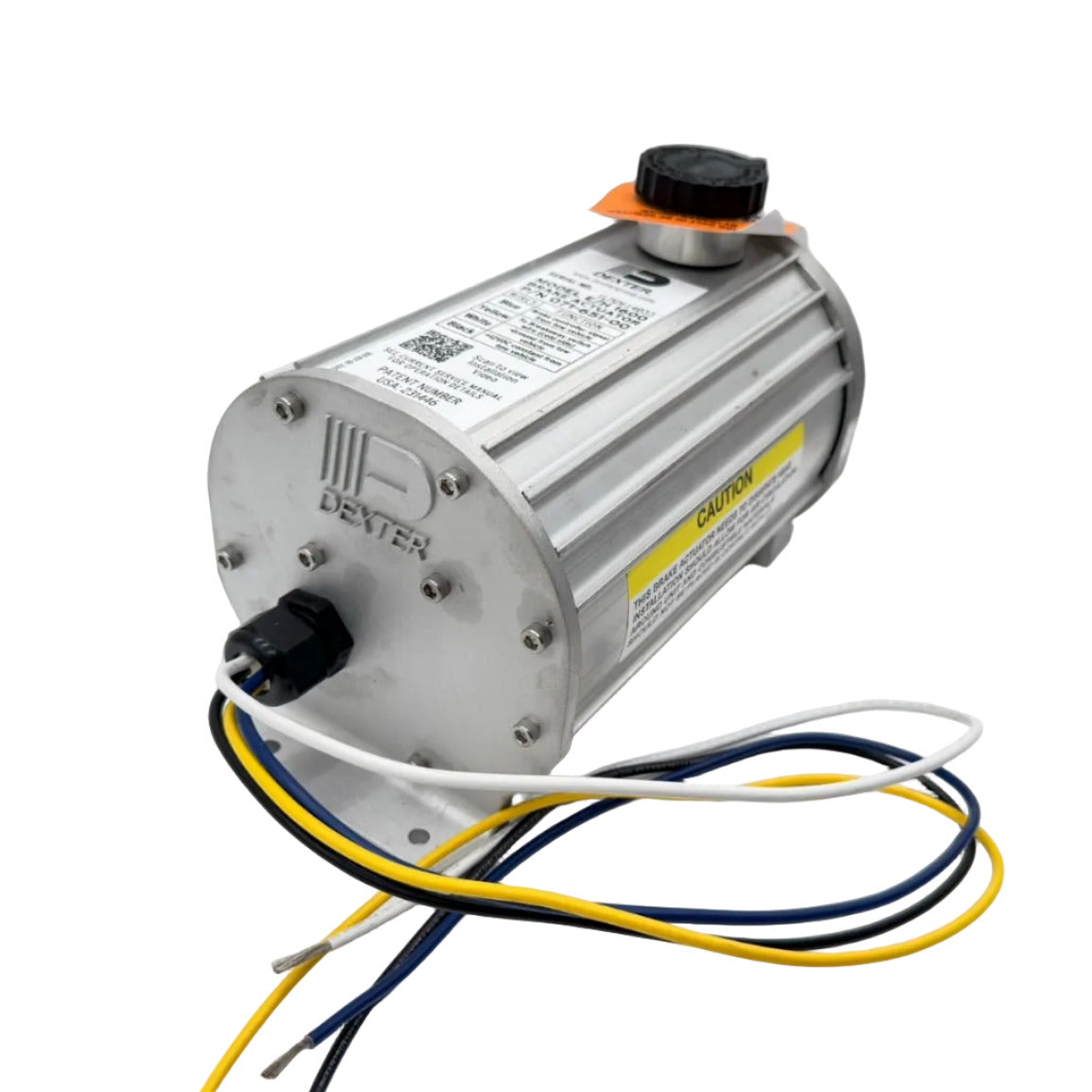

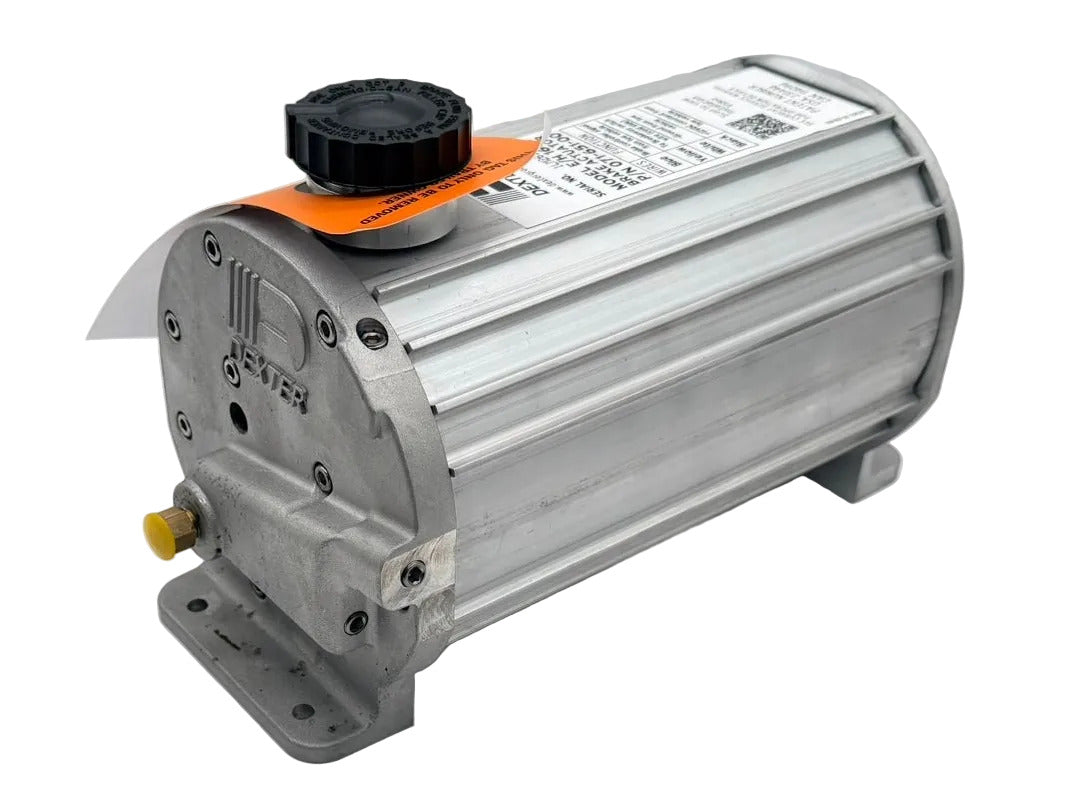

The Dexter K71-651-00 DX1600 Electric-Over-Hydraulic (EOH) Brake Actuator is designed specifically for trailers equipped with hydraulic disc brakes. It converts the electrical signal from the tow vehicle's brake controller into hydraulic pressure to provide smooth, powerful trailer braking.

With a maximum output of 1,600 PSI, the DX1600 is designed for heavy-duty disc brake applications and can be used on single, tandem, and triple-axle trailer configurations.

Key Features

• 1,600 PSI Maximum Pressure
• Electric-Over-Hydraulic (EOH) Operation
• Designed for Hydraulic Disc Brakes
• Built-In Brake Controller Compatibility Adapter
• Fast Hydraulic Pressure Response
• Self-Priming Pump
• Large Brake Fluid Reservoir
• Corrosion-Resistant Housing

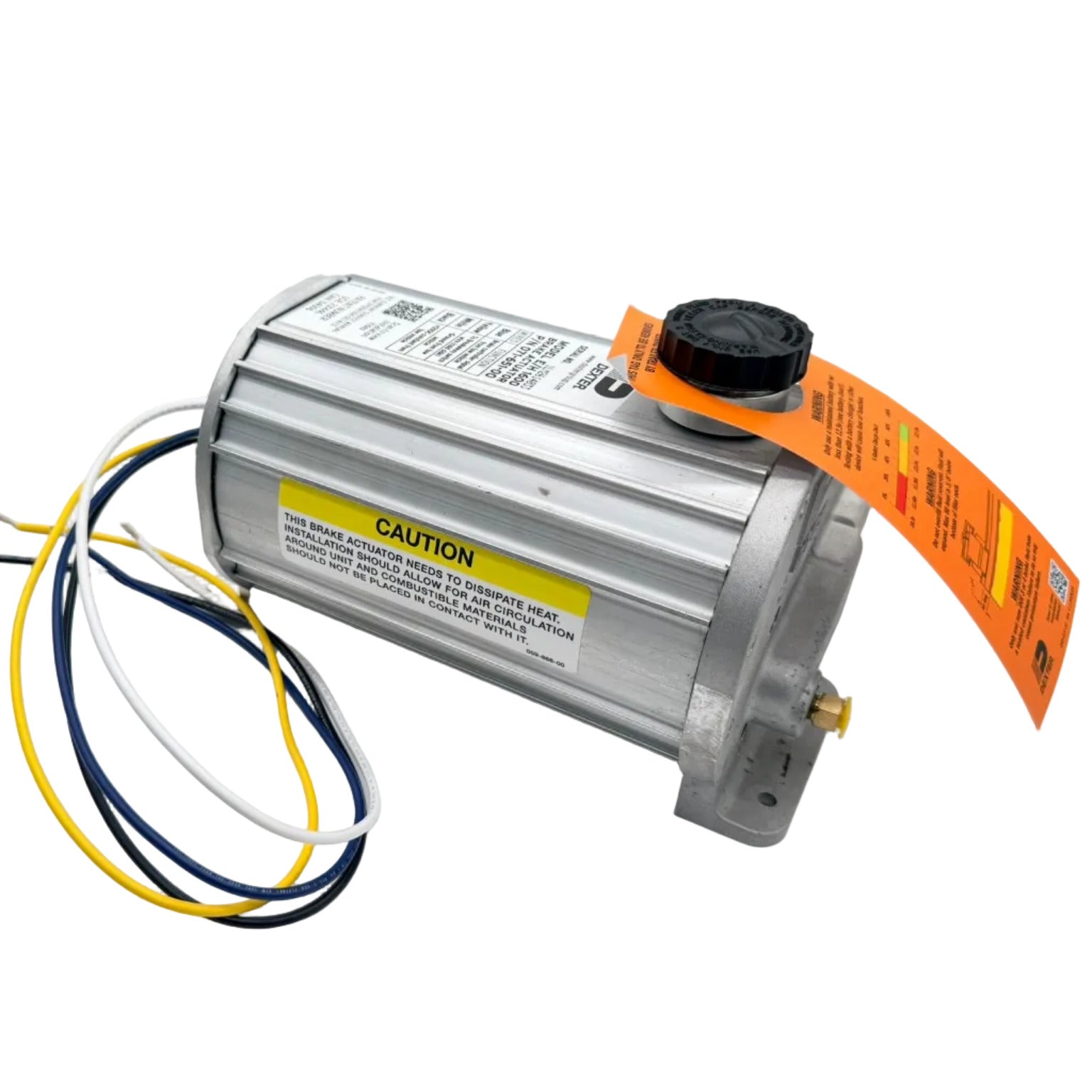

• Finned Housing Helps Dissipate Heat
• Enhanced Circuit Board & Wiring Protection

Specifications

• Dexter Part Number: K71-651-00
• Model: DX1600
• Maximum Pressure: 1,600 PSI
• Brake Application: Hydraulic Disc Brakes
• Operating Voltage: 12V DC

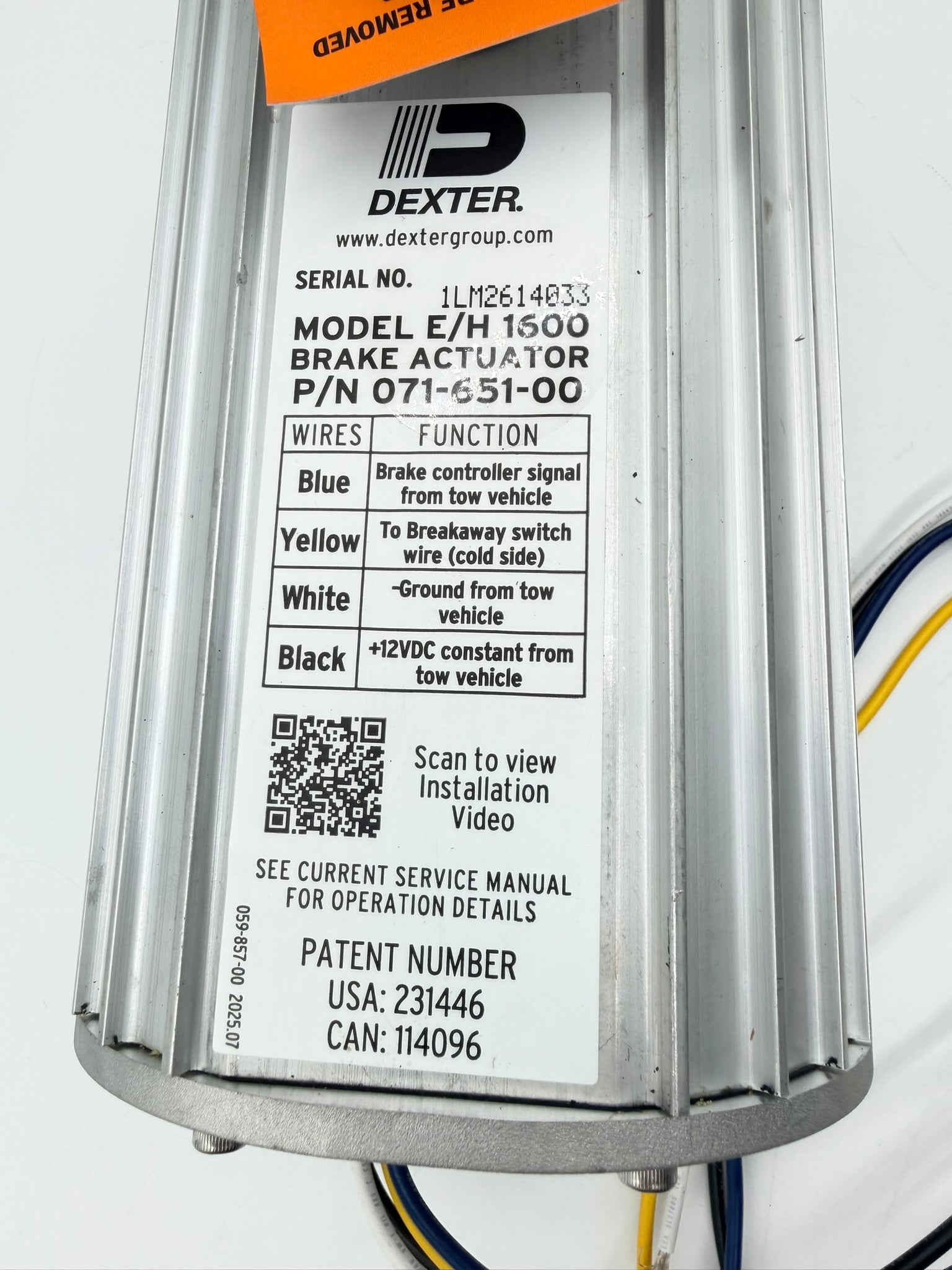

• Electrical Connection: 4-Wire

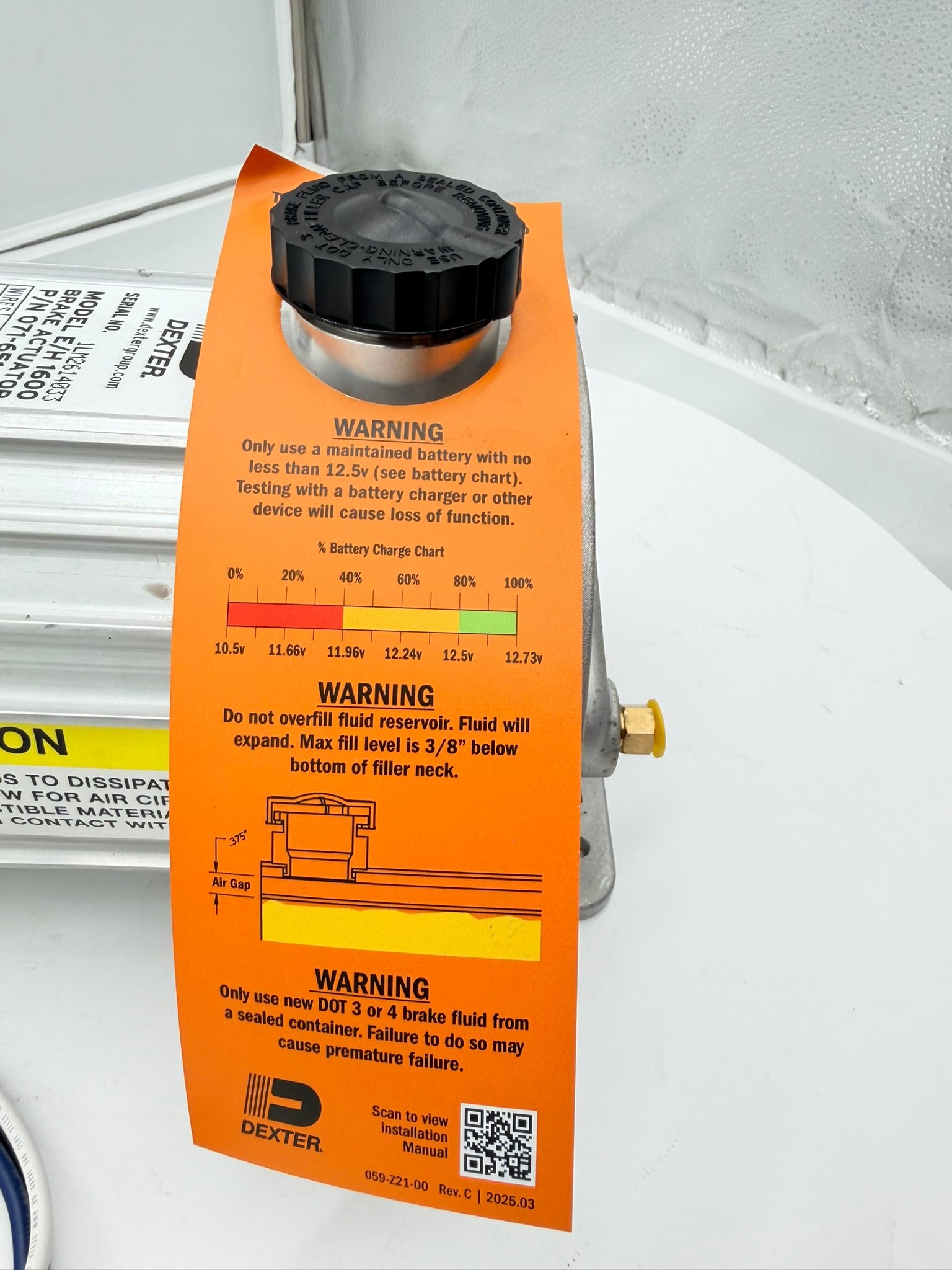

• Brake Fluid: DOT 3 or DOT 4
• Hydraulic Brake Line: 3/16"
• Trailer Configuration: Single, Tandem or Triple Axle
• Minimum Breakaway Battery: 9 Amp-Hour
• Warranty: 2-Year Limited Warranty

Applications

Designed for hydraulic disc brake systems on heavy-duty trailers including:

• Equipment Trailers
• Gooseneck Trailers
• Tandem Dual Trailers
• Heavy-Hauler Trailers
• Commercial Trailers
• Hydraulic Disc Brake Conversions

Important

1,600 PSI – FOR HYDRAULIC DISC BRAKES

Do not substitute a 1,000 PSI drum-brake actuator for an application requiring the 1,600 PSI DX1600.

Verify the K71-651-00 part number, hydraulic disc brake system, brake controller compatibility, and electrical requirements before ordering.
