12K Dexter Spring Eye Bolt 1"-8 x 5-1/2" – 007-169-00

Dexter 12K Spring Eye Bolt 1"-8 x 5-1/2" – 007-169-00

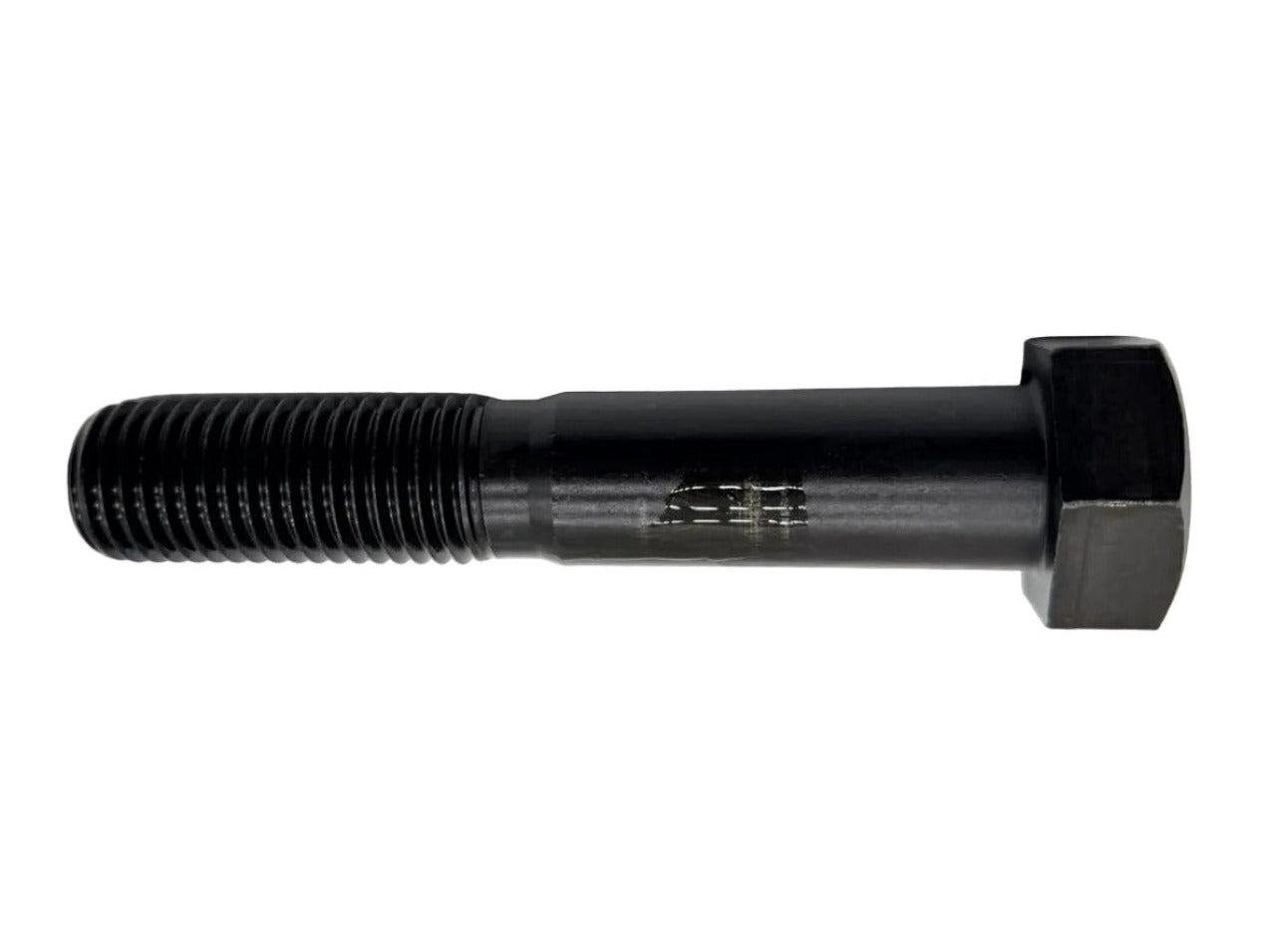

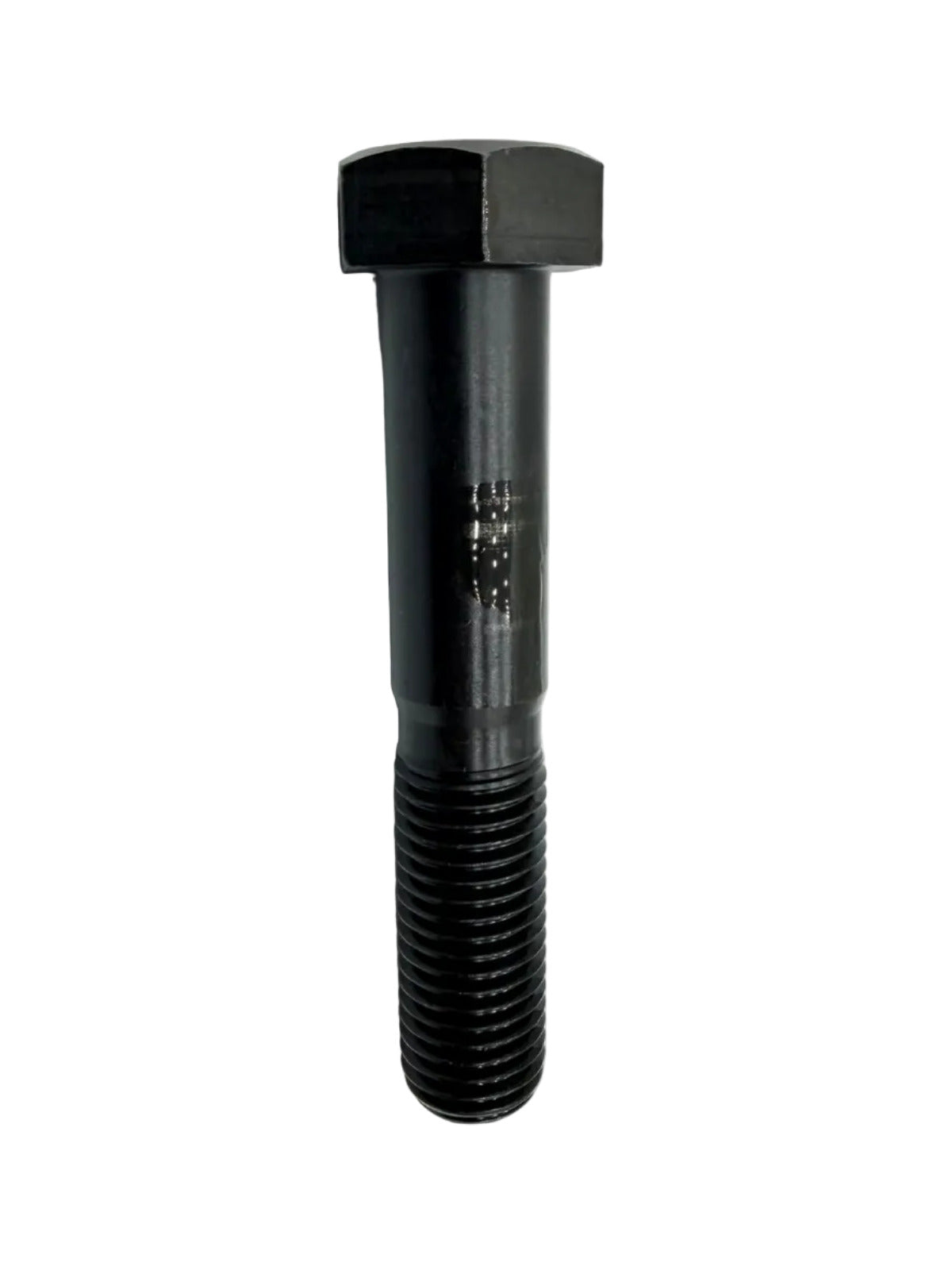

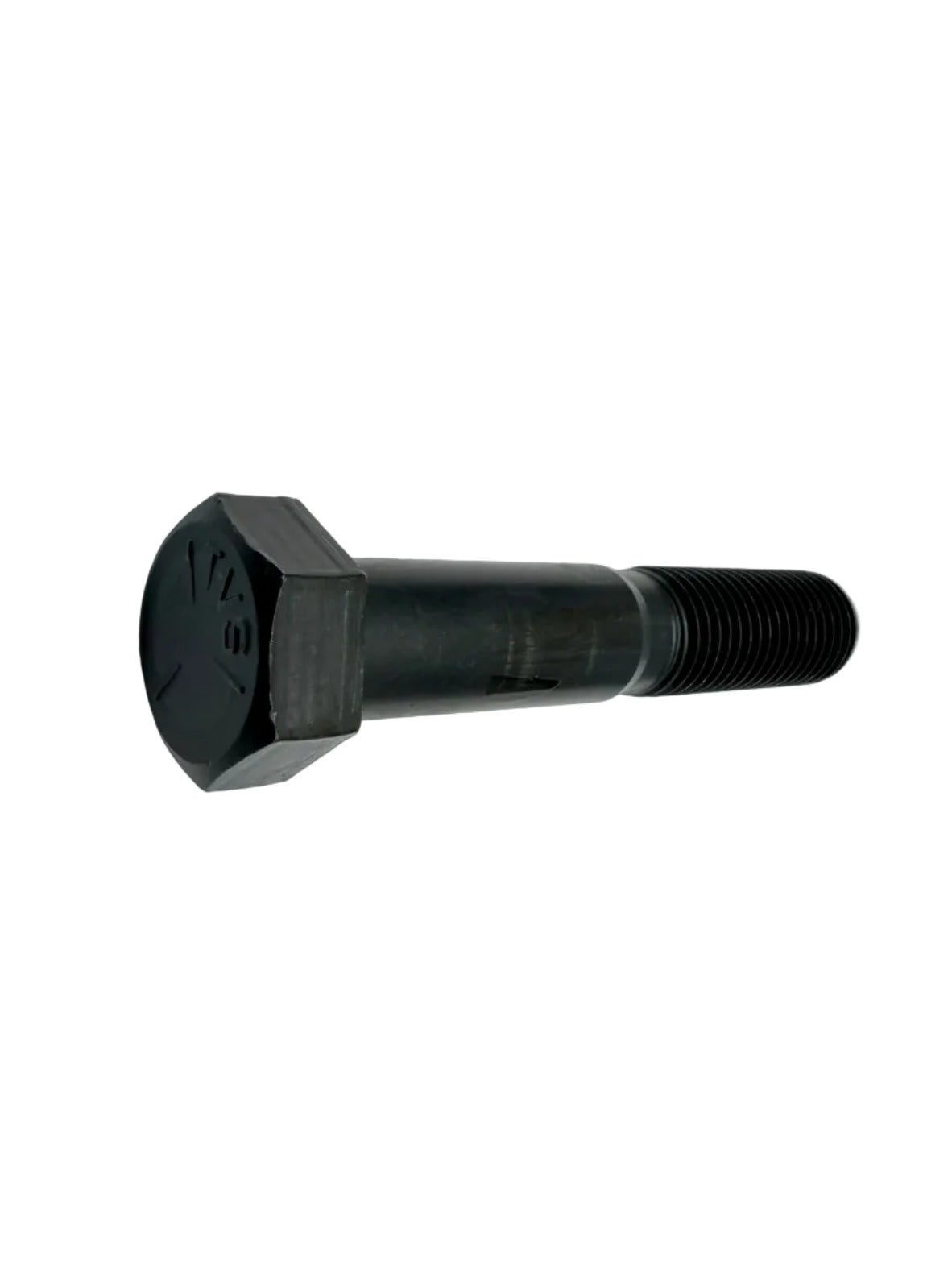

The Dexter 007-169-00 Spring Eye Bolt is a heavy-duty suspension bolt used on compatible 12,000 lb Dexter trailer axle spring assemblies. This 1" diameter Grade 5 bolt passes through the spring bushing to secure the leaf spring to the applicable hanger or equalizer.

Specifications

• Dexter Part Number: 007-169-00
• Axle Application: 12K Dexter
• Application: Spring Eye / Spring Bushing Bolt
• Bolt Diameter: 1"
• Thread Size: 1"-8
• Bolt Length: 5-1/2"
• Grade: Grade 5

Fits

• Dexter 12K Trailer Axle Spring Assemblies
• Used with compatible heavy-duty leaf spring bushings
• Secures the spring eye to the applicable hanger or equalizer

Related Hardware

• Locknut: Dexter 006-112-00
• Locknut Size: 1"-8

Ideal for replacing a worn, damaged, bent, or corroded spring bolt when servicing Dexter 12K heavy-duty trailer suspension systems.

Important: The 006-112-00 locknut is sold separately unless specifically stated otherwise.
