DeeMaxx EOH ALPHA 1600 psi Disc Brake Actuator w/ Built in Compatibility Adapter Fluid Capacity of 15.7 oz EOHA1600

$750.00
Shipping calculated at checkout.

DeeMaxx ALPHA EOH 1,600 PSI Disc Brake Actuator with Built-In Compatibility Adapter – EOHA1600

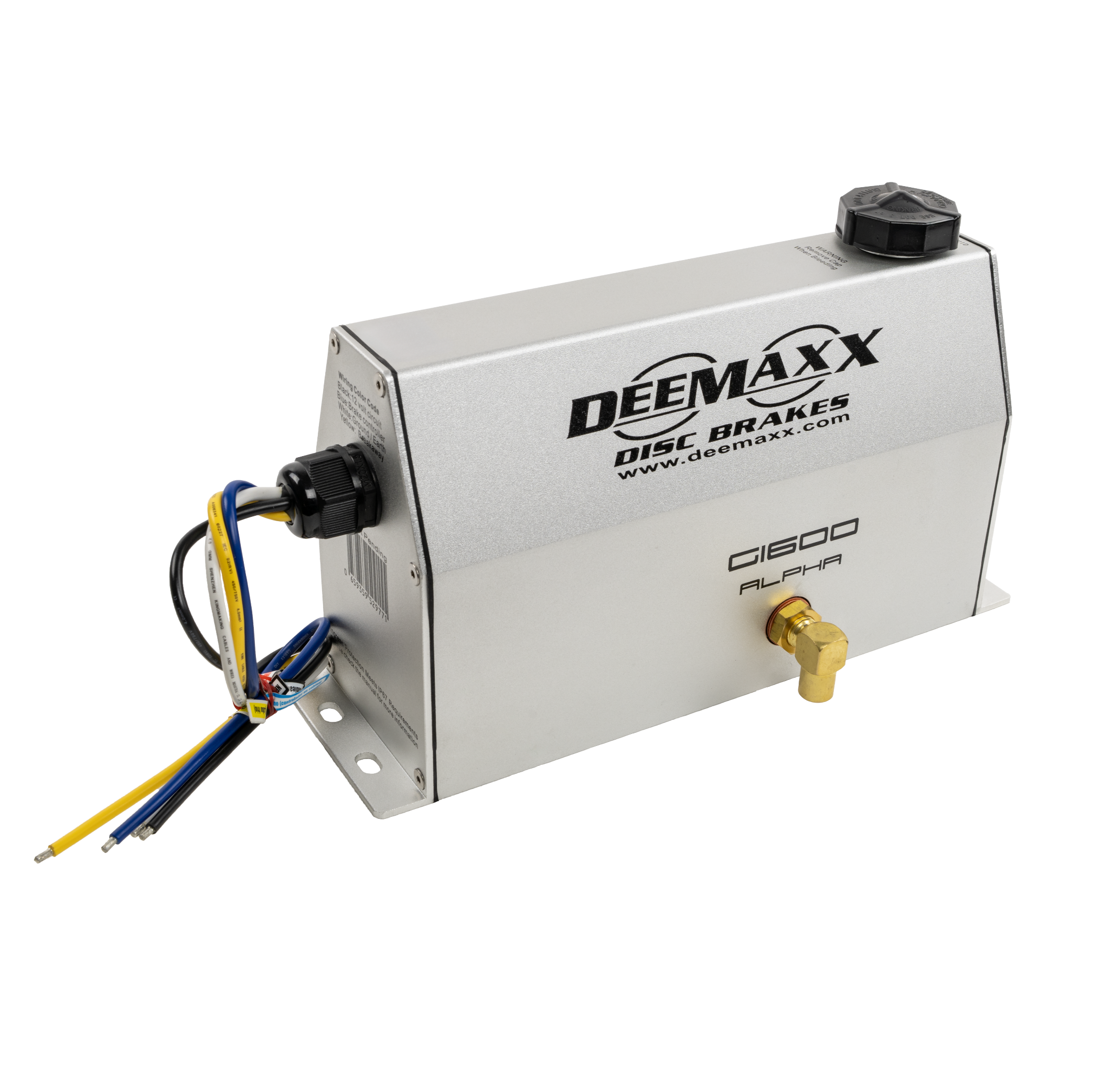

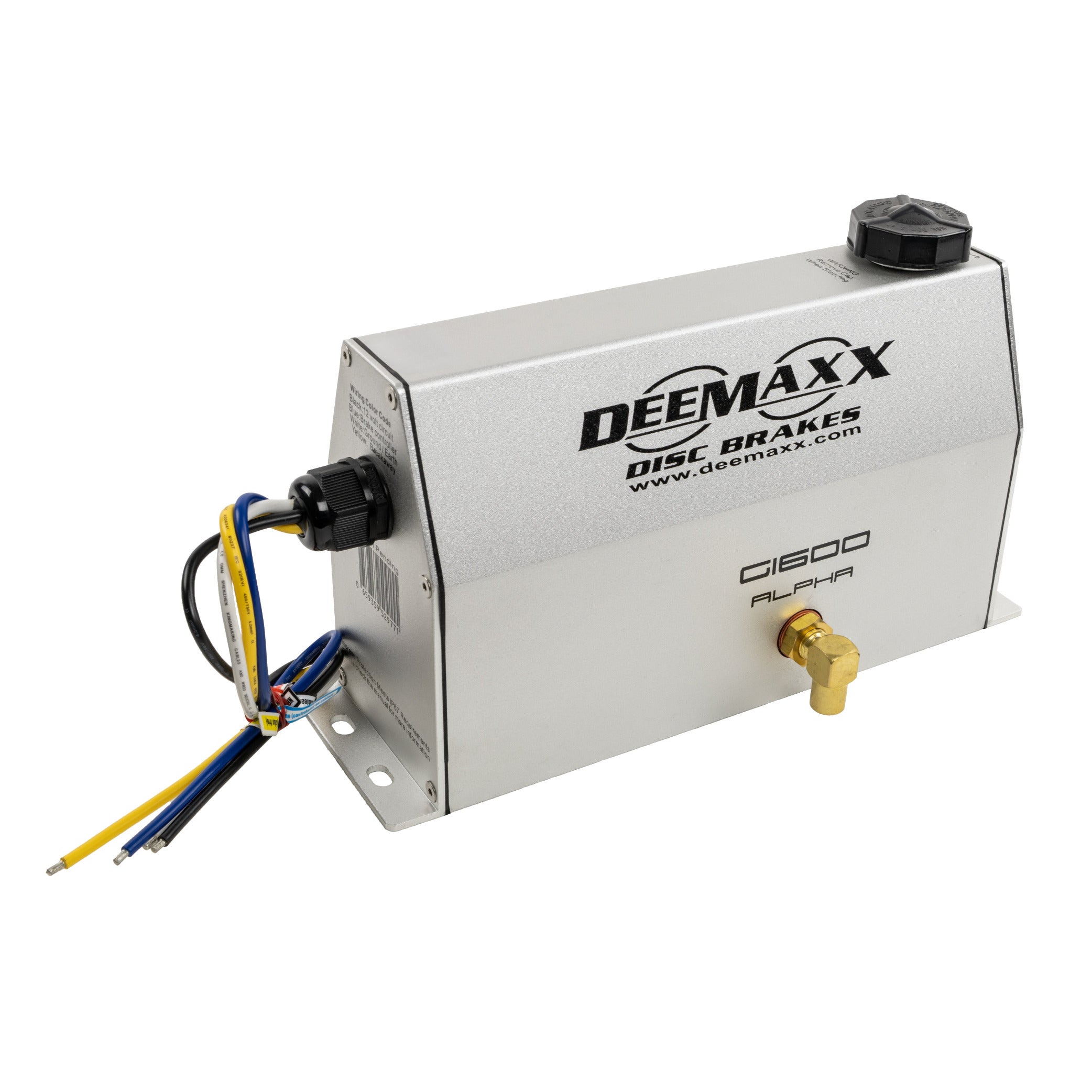

The DeeMaxx ALPHA EOHA1600 Electric-Over-Hydraulic (EOH) Brake Actuator delivers up to 1,600 PSI for trailers equipped with hydraulic disc brakes. Designed for fast response and heavy-duty trailer applications, the ALPHA actuator features a built-in compatibility adapter, eliminating the need for a separate external compatibility module on compatible brake controller setups.

With its weather-resistant anodized alloy housing, rotating hydraulic fitting, and fast pressure response, the EOHA1600 is built for dependable braking performance in demanding trailer environments.

Key Features

  • 1,600 PSI Maximum Pressure – Designed specifically for hydraulic disc brake systems.
  • Fast Brake Response – Reaches 1,000 PSI in approximately 0.184 seconds for quick braking response.
  • Built-In Compatibility Adapter – Integrated compatibility technology eliminates the need for a separate external adapter in compatible applications.
  • 360° Hydraulic Fitting – Rotating brake line connection provides greater flexibility when mounting and routing brake lines.
  • Weather-Resistant Construction – Anodized T6-grade extruded alloy housing helps protect the actuator from saltwater, moisture, corrosion, and harsh operating conditions.
  • Multi-Axle Capability – Suitable for single, tandem, triple, and quad-axle trailers equipped with hydraulic disc brakes.

Technical Specifications

  • DeeMaxx Part Number: EOHA1600
  • Actuator Type: Electric-Over-Hydraulic (EOH)
  • Brake Application: Hydraulic Disc Brakes
  • Maximum Pressure: 1,600 PSI
  • Brake Fluid Capacity: 15.7 oz
  • Brake Fluid: DOT 4
  • Operating Voltage: 12V DC
  • Required Circuit: Minimum 30 Amp
  • Typical Current Draw at Full Pressure: Approximately 18–24 Amps
  • Hydraulic Connection: Standard 3/16" inverted flare brake line fitting
  • Compliance: DOT Compliant
  • Empty Weight: Approximately 11.65 lbs

Dimensions

  • Overall Length: 10"
  • Base Width: 3.6"
  • Top Width: 1.7"
  • Mounting Centers: 10-7/8" x 1-5/8" (275mm x 40mm center-to-center)
  • Mounting Slots: 12mm x 8mm (approximately 0.47" x 0.31")

Trailer Applications

Designed for trailers equipped with hydraulic disc brakes, including:

  • Equipment Trailers
  • Gooseneck Trailers
  • Heavy-Duty Utility Trailers
  • Commercial Trailers
  • Boat Trailers
  • Single, Tandem, Triple & Quad-Axle Trailers

The DeeMaxx ALPHA EOHA1600 is an excellent choice for upgrading or replacing an electric-over-hydraulic disc brake actuator where fast response, high pressure, corrosion resistance, and brake controller compatibility are important.
